IP330 Analog Input Range Selection

Analog Input Range Selection (DIP Switch Settings)

Desired ADC Input Range * (VDC) Required Input Span (Volts) Required Input Type Switch Settings On Switch Settings Off

-5 to +5 ** 10 Bipolar 1,3,4,9 2,5,6,7,8

-10 to +10 *** 20 Bipolar 2,5,6,9 1,3,4,7,8

0 to +5 5 Unipolar 1,3,5,8 2,4,6,7,9

0 to +10 *** 10 Unipolar 1,3,4,7 2,5,6,8,9

* Assuming Gain of 1.

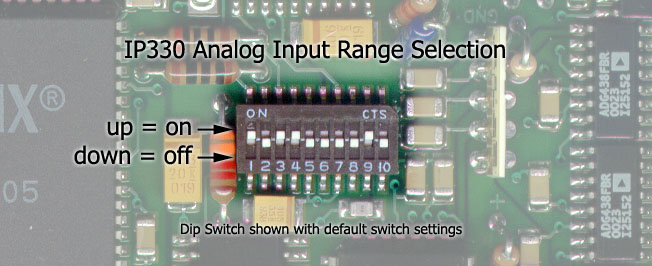

** The Board is shipped with the default DIP Switch setting for the -5 to +5 Volt ADC Input range as shown in the above image.

*** These ranges can only be achieved with +/- 15 Volt external power supplies. The Input ranges will be clipped if +/- 12 Volt supplies are used. Typically to +/- 8.5 Volt maximum Inputs.

Analog Input Range Selection (DIP Switch Settings)
*Desired ADC Input Range (VDC)**	Required Input Span (Volts)	Required Input Type	Switch Settings On	Switch Settings Off
-5 to +5 **	10	Bipolar	1,3,4,9	2,5,6,7,8
-10 to +10 ***	20	Bipolar	2,5,6,9	1,3,4,7,8
0 to +5	5	Unipolar	1,3,5,8	2,4,6,7,9
0 to +10 ***	10	Unipolar	1,3,4,7	2,5,6,8,9
* Assuming Gain of 1.
** The Board is shipped with the default DIP Switch setting for the -5 to +5 Volt ADC Input range as shown in the above image.
*** These ranges can only be achieved with +/- 15 Volt external power supplies. The Input ranges will be clipped if +/- 12 Volt supplies are used. Typically to +/- 8.5 Volt maximum Inputs.
